Customized SCADA systems to meet all solar PV project requirements

Arkan’s turnkey SCADA systems are equipped with a Power Plant Controller (PPC) that facilitates centralized control across the site, including substation, inverter, and device-level operations, in full compliance with Utility IA, PPA, and ISO standards.

Solar PV SCADA Solution Overview​

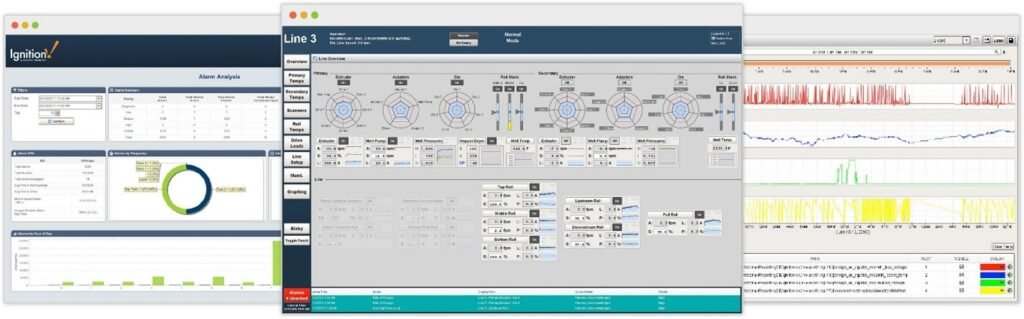

Solar PV SCADA HMI Graphical Screens:

    • Web-based
    • Customizable
    • Allows for changes in settings and control modes
    • POI data: MW, MVar, Voltages, Currents
    • Breaker Control
    • Inverter Auto/Manual – Start/Stop control
    • Inverter data: MW, MVar, Voltages, Currents
    • Site Controller for real and reactive power commands in compliance with utilities requirements and PPA
    • Alarms and Events

Solar PV SCADA Power Plant Controller Functionalities:

    • Active Power Control (Control modes adjusted per utilities requirements.
    • AGC – Active Power Curtailment & Limit Control: irradiance ramp control, max POI limit regulation, ramp rate control
    • Setpoint Ramp Rate
    • Site Output Ramp Rate Control
    • Frequency Response
    • Automatic Voltage Regulation with various control modes:
    • Reactive Power Control Mode
    • Power Factor Control Mode
    • Voltage Control Mode (Droop)
    • Voltage Control Mode (setpoint)
    • Ramp Rate Control and Reactive Limits
    • Capacitor and Inductor Bank Control
    • Custom site/Utility/AHJ specific requirements

Hardware:

    • SEL-3555 – PLC (Redundant as optional)
    • Full 19” SCADA rack with PPC – SCADA Server-Historian Server, Firewall, root Switches, Fiber and Cable management
    • Field communication enclosures (Field switches – Remote I/O, Fiber and cable management
    • MET Stations

Software:

    • Inductive Automation – Ignition HMI + Perspective
    • SEL RTAC (PPC programing)
software

On-site Integration & Testing:

    • Factory Acceptance Testing (FAT)
    • On-site commissioning support
    • Site Acceptance Testing (SAT)
    • Remote engineering and testing support through COD and Energization

Operator Training:

    • Remote, site specific SCADA system training (hardware and software)
    • Additional training options available upon request



On-going Maintenance and Support:

    • Remote, site specific SCADA system training (hardware and software)
    • Additional training options available upon request
    • Telephonic support
    • Monitored email support
    • Remote assistance using remote desktop and a virtual private network
    • Planned or emergency on-site support
    • Quarterly system health check



Weather Station:

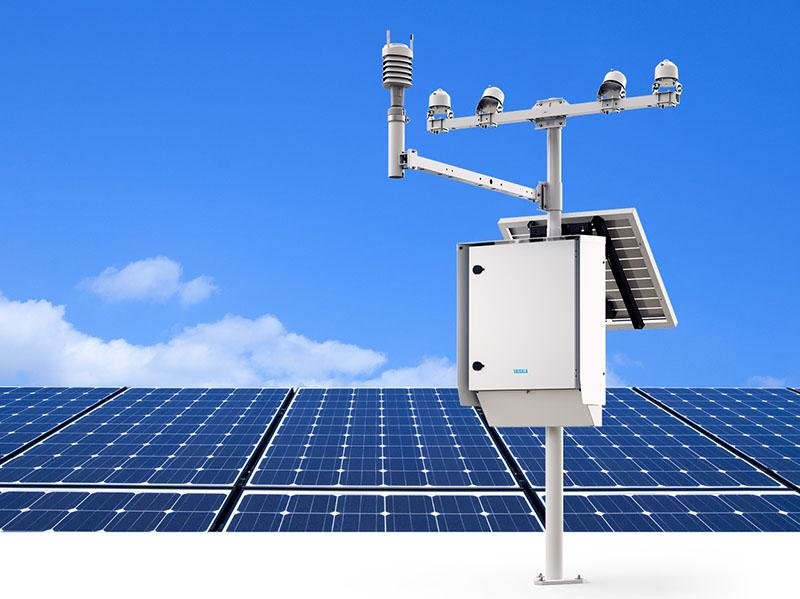

The Arkan MET Station matches functionality, reliability and simplicity to an existing technology. With an open architecture design, the MET Station is fully customizable and applicable with multiple SCADA applications and hardware platforms. It significantly lowers the total cost of ownership of both MET/WMS instruments and SCADA systems. The system is preconfigured and ready for ease of startup and commissioning by either Arkans engineering experts or others.

SCADA Support Services

Arkan’s SCADA Support Services allows end users to utilize Arkan’s dedicated team of experienced and knowledgeable engineers through a more proactive approach. Our team will have secure access to the operational system and will be readily available for any support or troubleshooting needs that arise through day-to-day operations. Utilizing this approach will ensure your systems will have the support they need to perform efficiently on a consistent basis.

Remote Support Services include general troubleshooting and support for any devices connected to the local SCADA system and network, originally provided by the Service Provider. These services also cover software-level troubleshooting and support for the SCADA network, alarms, and devices, but is not limited to, the following components:

    • Firewall(s)
    • Network Switches
    • Inverters
    • BMS (if applicable)
    • MV transformers
    • Trackers
    • Substation IEDs
    • Weather stations and metering devices
    • HMI & SCADA point list modifications
    • Logic modifications & control tuning enhancements
    • Project recovery/restore

The service offering also provides on-demand dispatch of field technicians for on-site support, available at the customer’s request.
